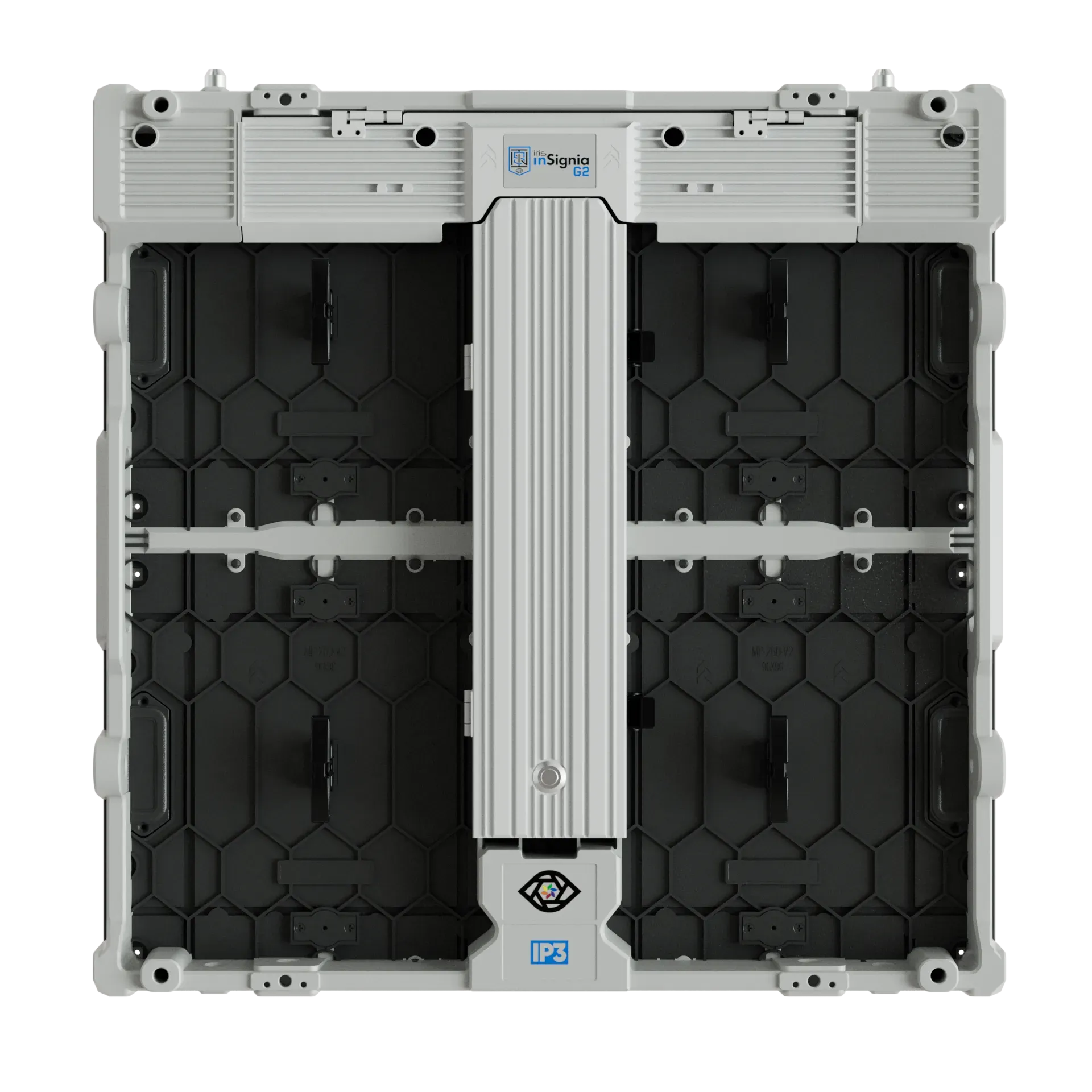

IRiS® InSignia™ G2 IP3

SKU:

124607

  • 3.9mm
    Pixel Pitch
  • 4,500 Nits
    Brightness
  • IP65 Front / IP54 Rear

Connect with
an expert

Overwhelmed by the sheer amount of options when it comes to LED Walls? Have our dedicated team help you out.

Plan Your Next Video Project

Use our online quote building tool to start planning your next video wall project.

Build Quote ›

No Fears for
7 Years

Panels built to last with a warranty to back 'em up for 7 years or 2,500 shows – whichever comes first. Oh, and if you can do 2,500 shows in 7 years, we tip our cap to ya!

Learn More ›

PAnel Info

SPECS

Manual / downloads

Brightness

4,500 Nits

Certifications

FCC, ETL, CE, RoHS

Color Depth

14 Bit

Curvature

±9° Standard, 0/90° Custom

Grayscale

16 Bit

IP Rating

IP65 Front / IP54 Rear

LED Configuration

SMD 1820 3-in-1

Lifespan

100,000 Hours

MAX Power usage

140W

Module Quantity

2x2

panel dimensions

500 x 500 x 80 mm

panel resolution

128 x 128

Pixel Density

65,536 Dots/m²

Pixel Pitch

3.9mm

Receiving Card

NovaStar A8s

(Customizable with Brompton processing)

Refresh Rate

≥ 3,840 Hz

Scan Mode

1/16

primary usage

InSignia G2

Serviceability

Front and Rear

Warranty

7 Year
